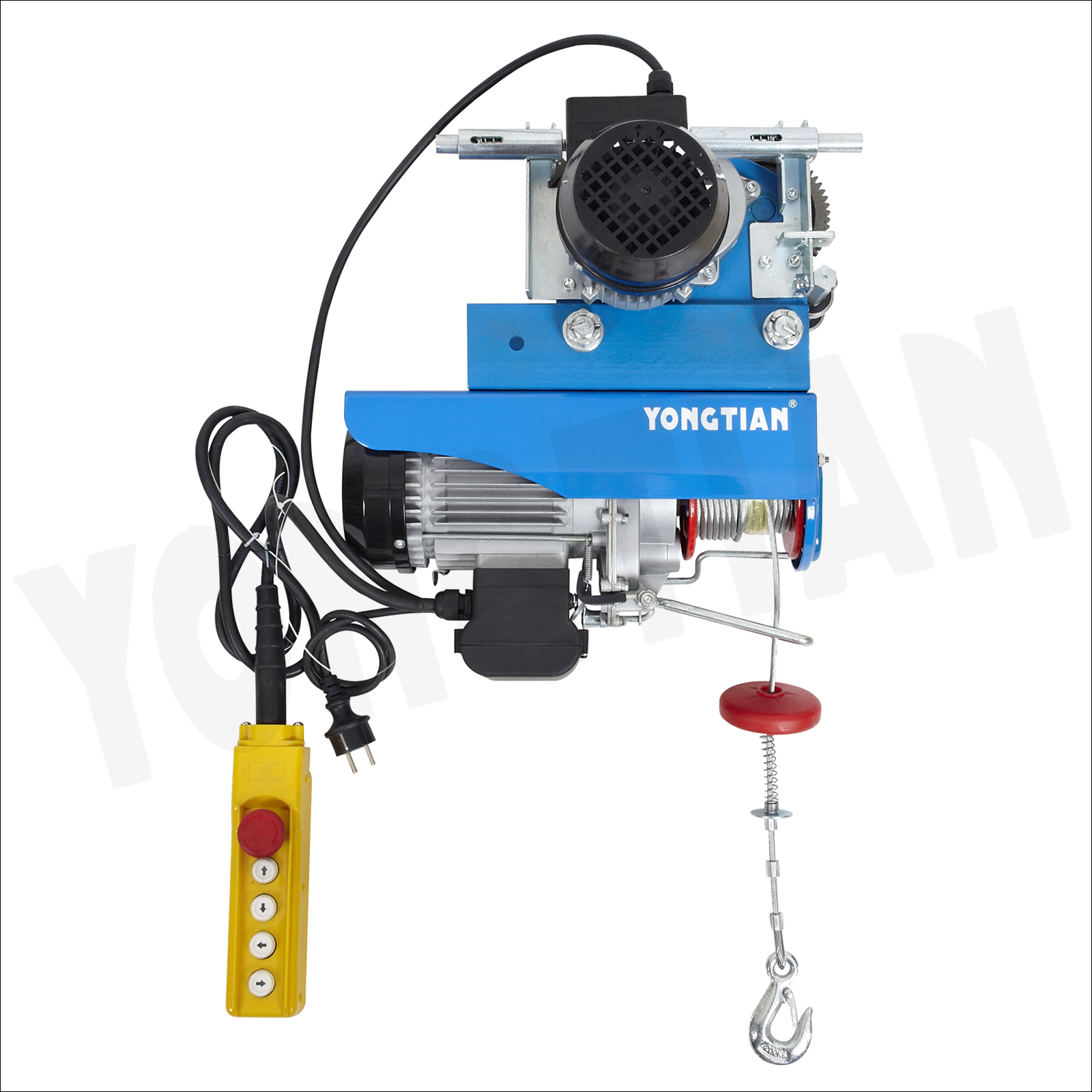

Electric Trolley
Electric Trolley

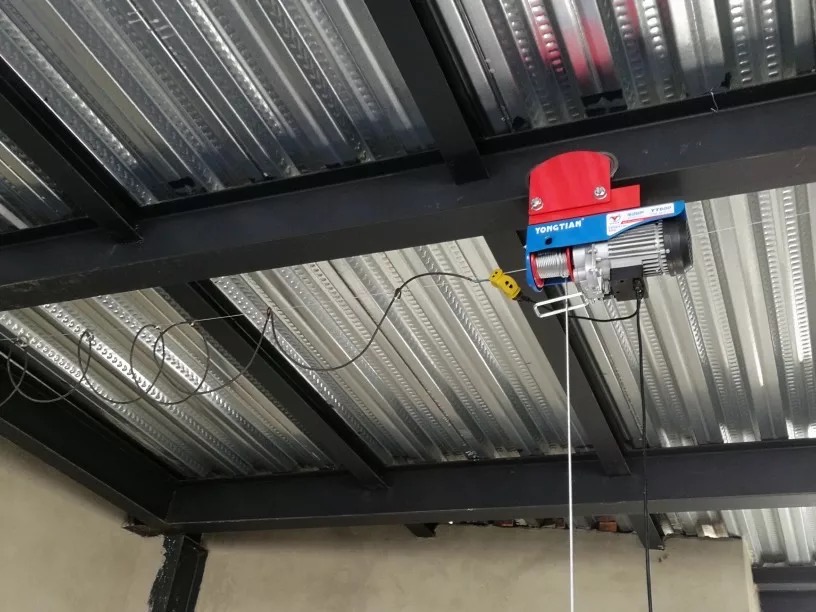

It works by running on the down edge of the H shaped track, combined with the electric hoist to be formed into the lane with bridge, single-rail or arm-suspended style.
It can be widely used in the hang-transportation occasions for mounting the machine and equipment in workshop, mining, dock, warehouse, compression casting, pressurization.
TUV/GS/CE CERTIFICATION
|
Specification |
YT-TD0.5 |
YT-TD1.0 |
|
Rated voit(v) |
230V/50Hz |
230V/50Hz |
|
Input power(w) |
200W |
200W |
|
Rated capacity(ton) |
0.5ton |
1.0ton |
|
Assembing height(m) |
6m |
6m |
|
Min radius(m) |
1 |
1 |
|
Steel bean(a) |
10~22a |
10~22a |
|
Track(mm) |
68~110mm |
68~110mm |
|
Qty/CNT(pcs) |
1pcs |
1pcs |
|
Measurement(cm) |
31x28.5x24cm |
31x28.5x24cm |
|
G/N(kg) |
14.5kg |
15.5kg |
