Trolley Hoist

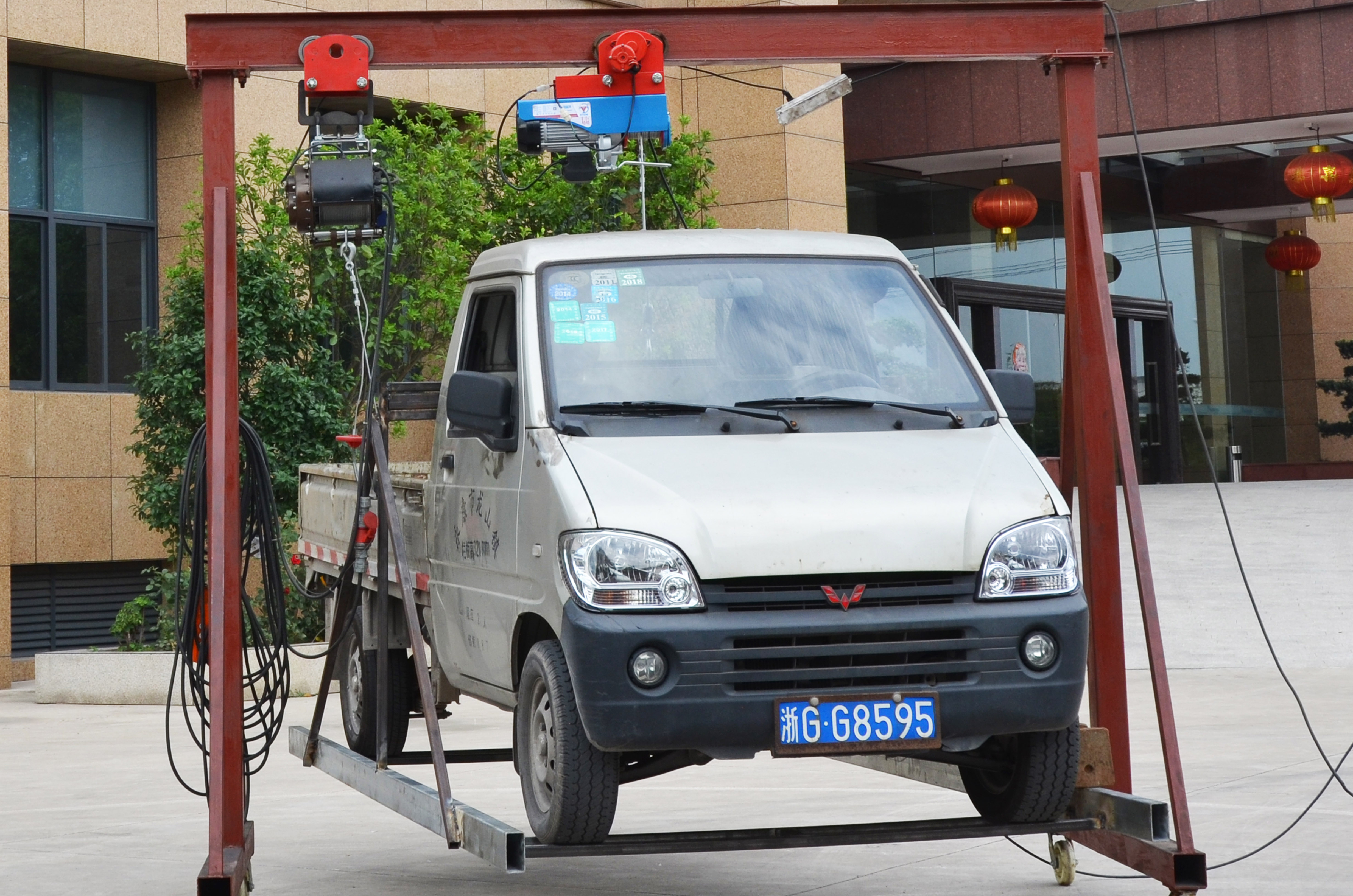

It works by running on the down edge of the H shaped track, combined with the electric hoist to be formed into the lane with bridge, single-rail or arm-suspended style.
It can be widely used in the hang-transportation occasions for mounting the machine and equipment in workshop, mining, dock, warehouse, compression casting, pressurization.
* Equipped with 0.5ton or 1.0ton Electric Trolley.
* Lifting capacity 100/200kg,125/250kg,150/300kg,200/400kg,250/500kg,300/600kg,400/800kg, 500/1000kg,600/1200kg at 8~10 m/min Lifting Speed.
* 12m, 18m, 20m, 25m, 30m, 40m Lifting Height are optional;
* Safety position limit device on trolley.
* Up/Down position limit device on hoist.
* Pendant control with Safety Emergency Stop Switch.
TUV/GS/CE/EMC ED 20% IP 54
A1 8000 Full Load Cycles
TD 0.5 for 100/200kg, 125/250kg, 150/300kg, 200/400kg, 250/500kg
TD 1.0 for all the models
|
Specification |
YT-TD0.5 |
YT-TD1.0 |
|
Rated voit(v) |
230V/50Hz |
230V/50Hz |
|
Input power(w) |
200W |
200W |
|
Rated capacity(ton) |
0.5ton |
1.0ton |
|
Assembing height(m) |
6m |
6m |
|
Min radius(m) |
1 |
1 |
|
Steel bean(a) |
10~22a |
10~22a |
|
Track(mm) |
68~110mm |
68~110mm |
|
Qty/CNT(pcs) |
1pcs |
1pcs |
|
Measurement(cm) |
31x28.5x24cm |
31x28.5x24cm |
|
G/N(kg) |
14.5kg |
15.5kg |
|
Specification |
YT--100/200TD |
YT-125/250TD |
YT-150/300TD |
YT-200/400TD |
YT-250/500TD |
YT-300/600TD |
YT-400/800TD |
YT-500/1000TD |
|
Rated voit(v) |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
230V/50Hz |
|
Input power(w) |
450W |
450W |
550W |
800W |
800W |
1050W |
1300W |
1600W |
|
Rated lifting capacity(kg) |
single line- 100kg |
single line- 125kg |
single line- 50kg |
single line- 200kg |
single line- 250kg |
single line- 300kg |
single line- 400kg |
single line- 500kg |
|
Lifting speed(m/min) |
single line- 10m/min |
single line- 10m/min |
single line- 10m/min |
single line- 10m/min |
single line- 10m/min |
single line- 10m/min |
single line- 10m/min |
single line- 10m/min |
|
Lifting height(m) |
single line- 20m |
single line- 20m |
single line- 20m |
single line- 20m |
single line- 20m |
single line- 20m |
single line- 20m |
single line- 20m |
|
Rope diameter(mm) |
3.0mm |
3.0mm |
3.0mm |
4.0mm |
4.0mm |
4.5mm |
5.0mm |
6.0mm |
|
Qty/CNT(pcs) |
1pcs |
1pcs |
1pcs |
1pcs |
1pcs |
1pcs |
1pcs |
1pcs |
|
Measurement(cm) |
36.8x30.5x25cm |
36.8x30.5x25cm |
36.8x30.5x25cm |
42.5x25x30.5cm |
42.5x25x30.5cm |
42.5x25x30.5cm |
42.5x25x30.5cm |
51.1x26.6x32.2cm |
|
G/N(kg) |
12.5kg |
12.5kg |
13.0kg |
19.7kg |
19.7kg |
20kg |
20kg |
26kg |
