Scalfold Two-Speed Rope Hoist

Product Category

Tiger Rope Hoist especially for scaffolds, quick assembly, ideal tools for transporting scaffold components or for roofers and painters to transport building construction materials.

* Two speed 60m/min or 20m/min exchanged freely

* Working height maximum 40m extended to 75m

* Automatic reverse device

* Overload protection

* Power-off Protection

TUV/GS/CE/EMC  ED 20%  IP 54

A1 8000 Full Load Cycles

Parameter

Specification

YT-TGR-120S

Rated voit(v)

230V/50Hz

Output of the drive(kw)

0.45/1.35kw at 800/2850rpm

Rated lifting capacity(kg)

120kg

Duty ratio

DR 60%

Manual control with Emergency Stop Button

10m

Lifting speed(m/min)

fast-60m/min, low-20m/min

Lifting height(m)

40(75)m

Load cable for lifting height(m)

81m

Wire rope diameter(mm)

4.5mm, 1870N/mm2

Water proof

IP55

Qty/CNT(pcs)

1pcs

Standard pivot arm dimensions(cm)

185x100x15

Hoist Measurement(cm)

63x53x48cm

G/N(kg)

65kg

Pictures

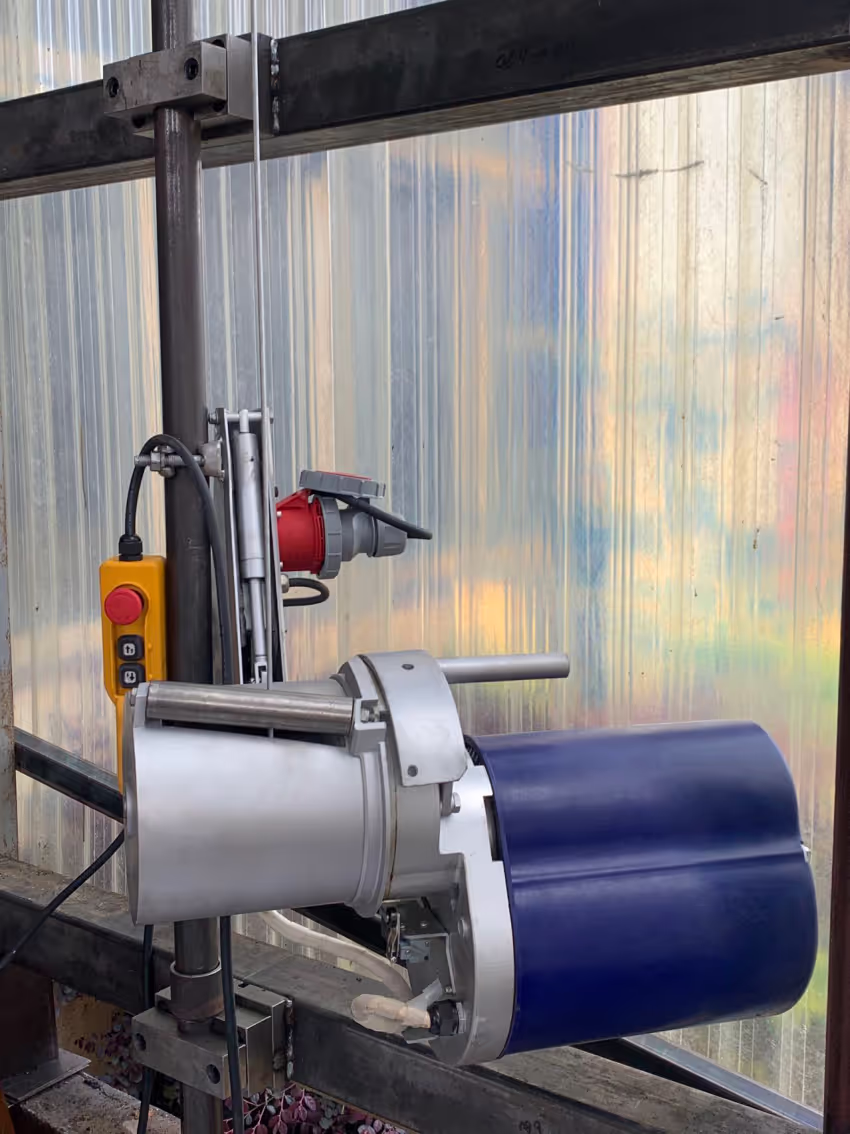

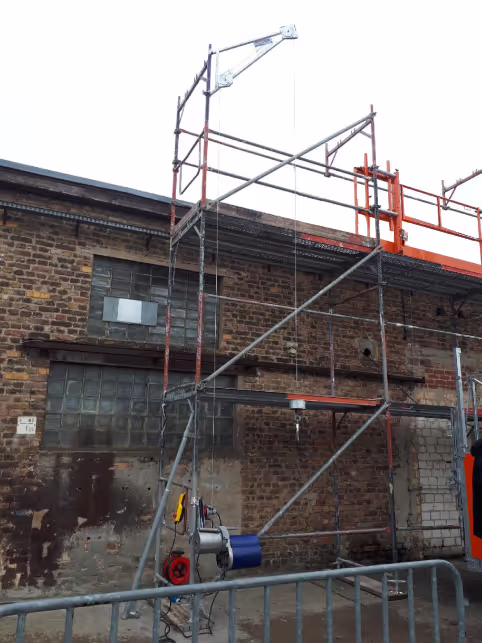

20250530124057832025053012412333
